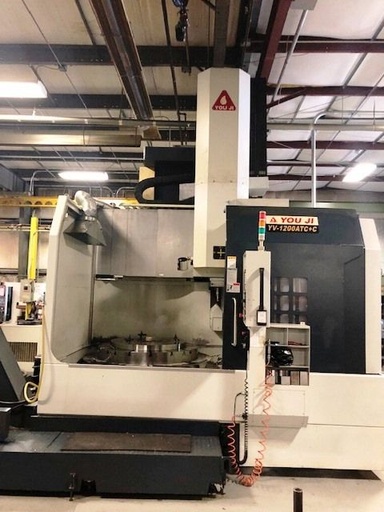

49" YOU-JI YV-1200,FANUC OITD-D,LIVE SPINDLE, 16ATC,49 HP,2400 RPMS,C AXIS, 2015   Our stock number: 94053

49 YOU-JI YV-1200,FANUC OITD-D,LIVE SPINDLE, 16ATC,49 HP,2400 RPMS,C AXIS, 2015


SPECIFICATIONS:
TABLE DIAMETER 49.21"
MAXIMUM SWING 62.99"
MAXIMUM TURNING DIAMETER 53.14"
MAXIMUM TURNING HEIGHT 47.24"
TABKE WEIGHT CAPACITY 11,000 LBS
Z-AXIS TRAVEL 35.43"
X-AXIS TRAVEL -3.93"/+32.87"
CROSS RAIL VERTICAL TRAVEL 31.49"
TABLE SPEED, 2-RANGES 1-350 RPM
C-AXIS CONTOURING 0.001 DEGREE
LIVE SPINDLE SPEED, 2-RANGES 2-2400 RPM
CUTTING FEED RATE 0.04-78.7 IPM
AUTOMATIC TOOL CHANGER 16 ATC
TOOL SHANK BT-50 7/24
MAIN TABLE MOTOR 49 HP/60 HP
LIVE SPINDLE MOTOR 20 HP/15 HP
FLOOR DIMENSIONS 158" X 182"
APPROX. MACHINE WEIGHT 50,600 LBS

EQUIPPED WITH:
FANUC OiTD-D
2017 KENNEMETAL RIGHT ANGLE HEAD UP TO 3/4" DIA USING ER 32 HOLDERS (USED

ONCE)!!!
60 HP
SPINDLE ORIENT
49" FACE PLATE WITH 4 INDEPENDANT BORING MILL JAWS
COOLANT SYSTEM
TOOL KIT
HALOGEN LAMP
3 COLOR OPERATION LIGHT
HEAT EXCHANGER FOR ELECTRICAL CABINET
AUTOMATIC LUBE SYSTEM
FANUC MANUAL GUIDANCE I CONVERSATIONAL FOR OiTD-D
GUIDE I
FULL ENCLOSURE-SQUARE GUARD WITH CHIP WASH
2 SPEED GEAR BOX
5 STATIC TOOL HOLDERS, 4 BORING, 12 BT 50 MILL HOLDERS
RENISHAW TOOL SETTER FIELD INSTALLED BY MFG.
C AXIS AND LIVE TOOL SPINDLE
20 HP UPGRADE FOR LIVE TOOLS (OPT)
16 TOOL ATC
1000 PSI COOLANT THRU SPINDLE.
CHIP CONVEYOR (48" DISCHARGE HEIGTH) W/CHIP BUCKET
ALL AVAILABLE MANUALS

INSPECT UNDER POWER IN LIKE NEW CONDITION IN A PLANT
