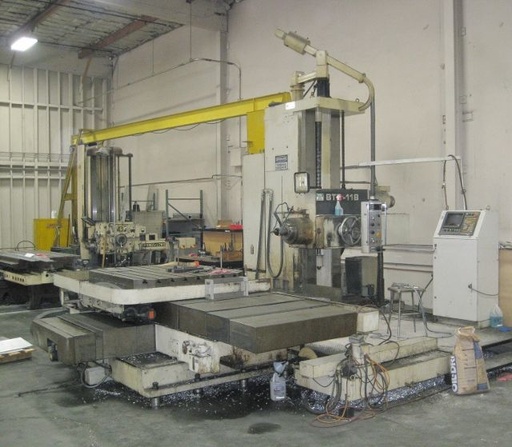

4.33" TOSHIBA BTD-11, TOSNUC 777 CNC/CRT,50 TPR,72"VERTICAL,78"X,2500 RPM   Our stock number: 87326

4.33 TOSHIBA BTD-11, TOSNUC 777 CNC/CRT,50 TPR,72 VERTICAL,78 X,2500 RPM


MODEL BTD-11

TOSNUC 777 CNC CONTROL


Spindle Diameter ................................. 4.33"
Spindle Taper..................................... #50

Vertical Travel of Headstock, Y-Axis ............. 72"
Table Cross Travel, X-Axis ....................... 78.74"
Spindle Travel, Z-Axis ........................... 19.68"
Saddle Travel, W-Axis ............................ 78.74"
Spindle Speeds ................................... 2-2500 RPM
Spindle Motor..................................... 20HP
Table Size, Built-In-Rotary ...................... 55.12" x 62.99"
Max. Weight on Table.............................. 13,860 LBS
Feed Rates ....................................... 1-157 IPM
Rapid Traverse ................................... 394 IPM
Floor Space, L x W ............................... 231.7" x 187"
Machine Weight ................................... 58,300 Lbs (approx.)

EQUIPPED WITH:

Tosnuc 777 CNC Control
Full Pendant Operation
B-Axis Rotary Table
Power Draw Bar
4-Way Bed Construction
Way Covers
Coolant System
Chip Conveyor
20 HP Spindle Drive Motor

UNDER POWER IN A WEST COAST PLANT
JUST SELLING AFTER PURCHASING LARGER MACHINE
