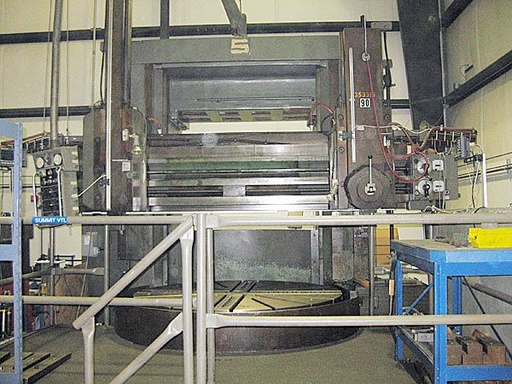

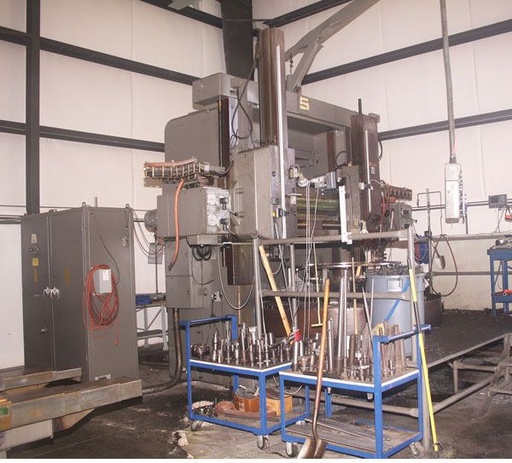

80" SUMMIT,86"swing,1.55 TO 140 RPM, DRO, 1977   Our stock number: 87244

80 SUMMIT,86 swing,1.55 TO 140 RPM, DRO, 1977

Click on picture below for larger version
80 SUMMIT,86 swing,1.55 TO 140 RPM, DRO, 197780 SUMMIT,86 swing,1.55 TO 140 RPM, DRO, 197780 SUMMIT,86 swing,1.55 TO 140 RPM, DRO, 1977


Flush floor design, no pit required

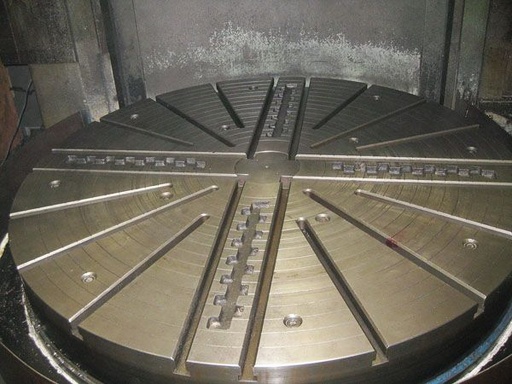

Diameter of table: ......................................... 78"

Maximum swing w/either vertical head: ...................... 86"
Maximum swing with side head: .............................. 82"
Maximum machining height above table: ...................... 59"
Maximum height under cross rail: ........................... 62.2"
Maximum weight of work piece: .............................. 26,500 Lbs
Vertical travel of L.H. ram head: .......................... 47 "
Swivel of L.H. ram head: ................................... 35
Vertical travel of R.H. pentagon turret head slide: ........ 30"
Swivel of R.H. turret heads: ............................... 35
Vertical feed of side head: ................................ 59"
Horizontal feed of side head ram: .......................... 27 "
Vertical travel of cross rail: ............................. 49"
Infinitely variable table speeds: .......................... 1.55 to 140 rpm
16 Feeds: ..................................................................

.00197 to .1968 IPM
Rapid traverse rate: ....................................... 98 ipm

EQUIPPED WITH:

4-Jaw Chuck

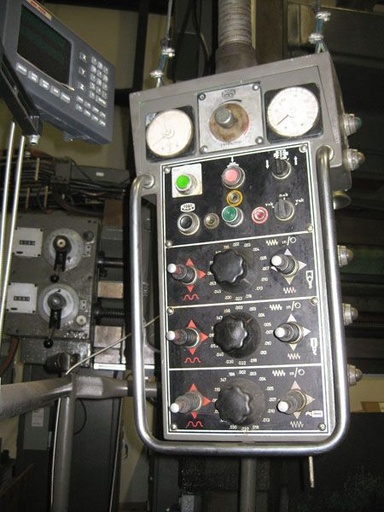

DRO

APPROX WEIGHT: 70,000 Lbs
DIMENSIONS: 169"LR x 165"FB x 181"Maximum height
