6" GIDDINGS & LEWIS MC-60,G & L8000B/CRT,60 ATC,50 TPR,72"X,54"Y,36"Z,85"W, 1993   Our stock number: 85874

6 GIDDINGS & LEWIS MC-60,G & L8000B/CRT,60 ATC,50 TPR,72 X,54 Y,36 Z,85 W, 1993

Click on picture below for larger version
6 GIDDINGS & LEWIS MC-60,G & L8000B/CRT,60 ATC,50 TPR,72 X,54 Y,36 Z,85 W, 19936 GIDDINGS & LEWIS MC-60,G & L8000B/CRT,60 ATC,50 TPR,72 X,54 Y,36 Z,85 W, 19936 GIDDINGS & LEWIS MC-60,G & L8000B/CRT,60 ATC,50 TPR,72 X,54 Y,36 Z,85 W, 1993


MAJOR PRICE REDUCTION *************

SEE VIDEO AT http://www.youtube.com/watch?v=FRQrEGClK2s



SPECIFICATIONS:

Serial Number 450-297-93

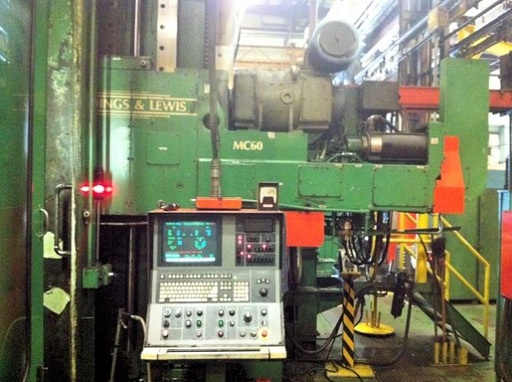

Giddings & Lewis 8000B CNC Control
60 Station Automatic Tool Changer

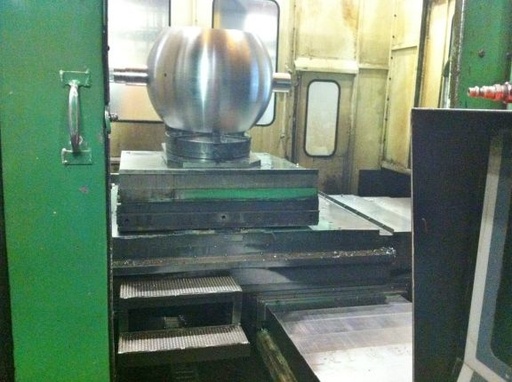

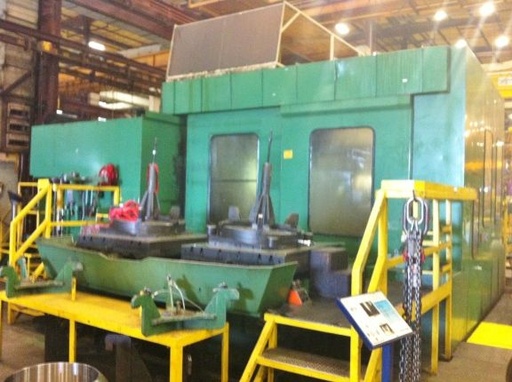

(2) 48" x 48" Pallets with Shuttle System
Spindle Diameter 6"
Taper In Spindle #50 ANSI
Head Travel Above Pallets, Y-Axis 54"
Headstock Vertical Travel, Y-Axis 72"
Table Cross Travel, X-Axis 72"
Spindle Travel, Z-Axis 36"
Saddle Travel, W-Axis 85"
Pallet Size (2) 48" x 48"
Table Weight Capacity 15,000 Lbs
B-Axis, Table Rotation 360,000 Degrees
Spindle Speeds: 12-2500 RPM
Spindle Motor 50 HP
Feeds 0.1 to 100 IPM
Rapid Traverse, X & Y Axes 450 IPM
Rapid Traverse, W & Z Axes 300 IPM
Electrics 460/3/60

BUILT-IN ROTARY TABLE:

Table Weight Capacity 25,000 Lbs
Number Positions 360,000
Rotary Table Torque 30,000 ft lbs
Accuracy Rating +/- 5 Seconds
Repeatability +/- 1.5 Seconds
Rotational Speed 1 RPM
Traverse Rate, X-Axis 450 IPM
Feed Range X-Axis 0.010-150 IPM

EQUIPPED WITH:

Giddings & Lewis 8000B CNC Control
Auxilliary Hand Held Pendant
Single Point Threading
Tool Probe for tool setting
Thermal Compensation of Z-Axis
Vertically Adjustable Pendant
In Process Gauging System
Software For CH-8 Facing Head (Head Not Included)
(2) 48" x 48" Pallets with Shuttle System
(2) 48" x 48" Pallets w/ Additonal Stands
Collet Type Draw Bar
Lubri-Cool Hydraulic Cooling System
High Pressure Coolant Thru Spindle: 60 PSI 10-12 GPM
Flood Coolant & Air Blast For Tool Change
Hardened Ways on All Axes
Way Covers On All Axes
Full Chip and Splash Enclosure
Chip Conveyor with Elevator
50 HP Spindle Motor 460/3/60 Cycle

INSPECT UNDER POWER IN EXCELLENT CONDITION IN A SOUTHERN PLANT
