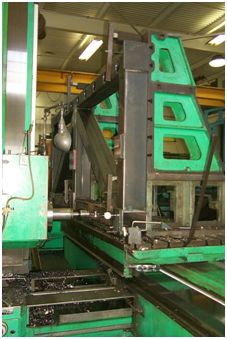

4" LUCAS 4B-120,CAT 50 TPR,20 HP,1200 RPM,GLASS SCALES, 1969   Our stock number: 83481

4 LUCAS 4B-120,CAT 50 TPR,20 HP,1200 RPM,GLASS SCALES, 1969

Click on picture below for larger version
4 LUCAS 4B-120,CAT 50 TPR,20 HP,1200 RPM,GLASS SCALES, 1969

***** GLASS SCALES

Specifications:

Working surface of table:............................ 98" x 48"
Cross table travel:.................................. 96"
Saddle Travel: ...................................... 47"
Vertical head travel: ............................... 72"
Spindle travel: ..................................... 36"
TAPER................................................ CAT 50(POWER TOOL LOCK)

Motor size: ......................................... 20 H.P.
25 spindle speeds:................................... 9-1200 RPM
Feed Ranges: ........................................ .0001 to 1.008 IR

EQUIPPED WITH

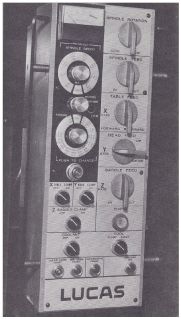

Full Pendant control (see picture)
Automatic way lubrication
Hardened and ground bed and table ways
Floor space: 14 ft. x 18 ft.
Weight (approx.): 35,000 lbs.
****Mitutoyo glass scales (.0001") with digital readout installed on all axes
Machine built in 1969; Serial Number 42B 4308

Condition: Good
