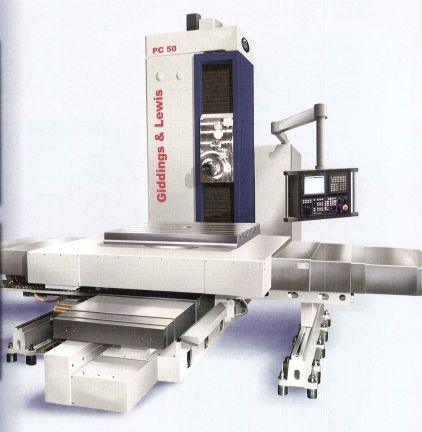

5" GIDDINGS & LEWIS PC-50,FANUC 160IMB,98"x,83"y,62"z,31"spindle,rot tble,200   Our stock number: 83359

5 GIDDINGS & LEWIS PC-50,FANUC 160IMB,98 x,83 y,62 z,31 spindle,rot tble,200

Click on picture below for larger version
5 GIDDINGS & LEWIS PC-50,FANUC 160IMB,98 x,83 y,62 z,31 spindle,rot tble,2005 GIDDINGS & LEWIS PC-50,FANUC 160IMB,98 x,83 y,62 z,31 spindle,rot tble,2005 GIDDINGS & LEWIS PC-50,FANUC 160IMB,98 x,83 y,62 z,31 spindle,rot tble,200


Specifications:

Fanuc 160iMB 5-Axis CNC Control
60" Diameter A-Axis Vertical Rotary Table

Spindle Diameter..................................... 5.12"
Taper In Spindle..................................... CAT 50
Vertical Head Travel................................. Y-Axis 82.67"
Table Cross Travel, X-Axis........................... 98.42"
Saddle Travel, Z-Axis................................ 62.00"
Spindle Travel, W-Axis............................... 31.50"
Table Size, Built-In Rotary.......................... 49.21" x 62.99"
Table Rotation, B-Axis............................... 360,000 Positions
Table Load Capacity.................................. 25,000 Lbs
Spindle Speeds....................................... 10-4000 RPM
Spindle Motor........................................ 40 HP / 60 HP
Floor Space W x D.................................... 240" x 300"
Overall Height....................................... 197"
Approximate Weight................................... 70,000 Lbs
Rapid Traverse....................................... 590 IPM

EQUIPPED WITH:

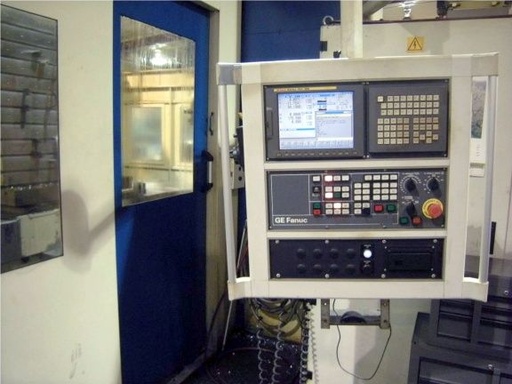

Fanuc 160iMB 5-Axis CNC Control with Manual Guide i

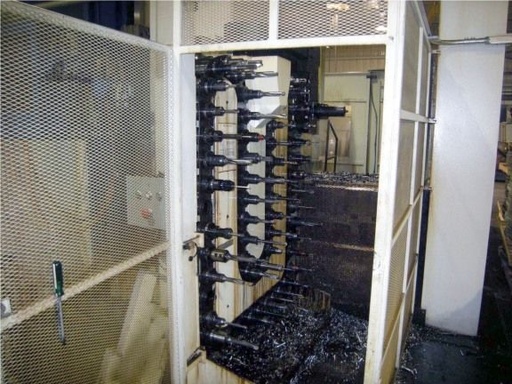

60 Station Automatic Tool Changer
Remote Pendant
Spindle Support
Tool & Part Probe
Built-In 360,000 Full Contouring Rotary Table

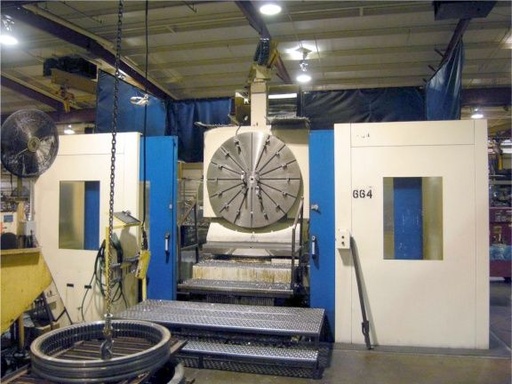

60" Diameter Producto A-Axis Vertical Rotary Table
Thru-Spindle Coolant System 60 PSI
Ballscrews & Independent AC Servo Drives
Hardened & Ground Box Ways on All Slide-Ways
Full Coolant & Chip Enclosure
Steel Telescoping Way Covers
Jorgensen Chip Conveyor System
Inspect In Plant Under Power
