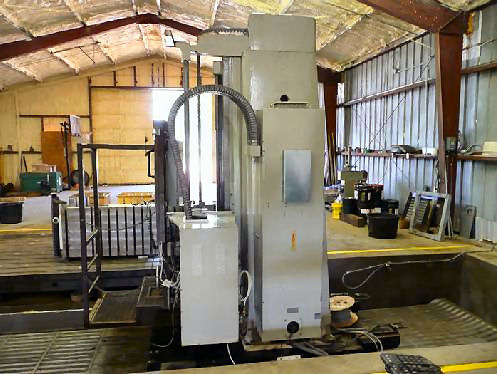

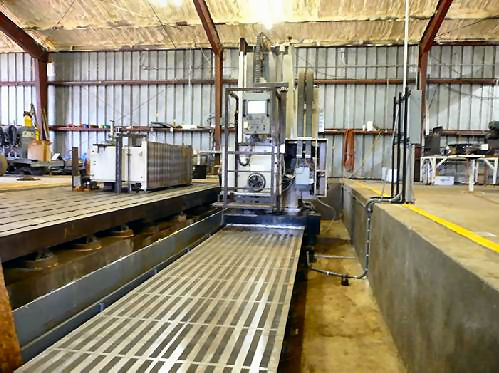

5 1/4", SCHARMANN, No. WF-132, HEIDENHAIN TNC 320,300" x travel,rebuilt 2008   Our stock number: 82120

5 1/4 , SCHARMANN, No. WF-132, HEIDENHAIN TNC 320,300 x travel,rebuilt 2008

Click on picture below for larger version
5 1/4 , SCHARMANN, No. WF-132, HEIDENHAIN TNC 320,300 x travel,rebuilt 20085 1/4 , SCHARMANN, No. WF-132, HEIDENHAIN TNC 320,300 x travel,rebuilt 20085 1/4 , SCHARMANN, No. WF-132, HEIDENHAIN TNC 320,300 x travel,rebuilt 20085 1/4 , SCHARMANN, No. WF-132, HEIDENHAIN TNC 320,300 x travel,rebuilt 2008
5 1/4 , SCHARMANN, No. WF-132, HEIDENHAIN TNC 320,300 x travel,rebuilt 20085 1/4 , SCHARMANN, No. WF-132, HEIDENHAIN TNC 320,300 x travel,rebuilt 20085 1/4 , SCHARMANN, No. WF-132, HEIDENHAIN TNC 320,300 x travel,rebuilt 2008


Specifications:

Spindle Head Diameter------------------ 5 1/4"
X-Axis Coulem Table Travel------------- 300"
Y-Axis Saddle Travel------------------- 76"
Z-Axis Spindle Head Travel------------- 37"
Spindle over Bed----------------------- 12"
Facing Head Travel--------------------- 8"
Table Load Capacity-------------------- 40,000 LBS
Spindle Taper-------------------------- Cat 50 Taper
Spindle Speeds------------------------- 1000 RPM
Spindle Drive Motor-------------------- 60/30 HP
Approximate Dimensions: (L X W X H)---- 34' x 15' x 6'
Machine Weight------------------------- 70,000 LBS

Equipped With:

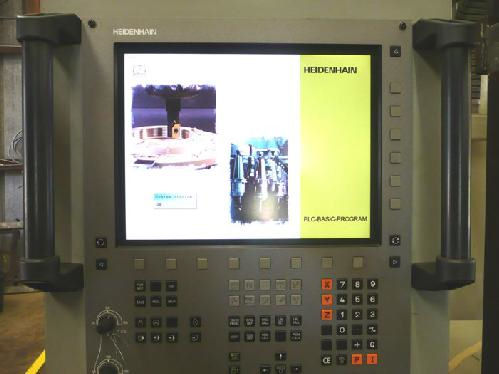

2008 Heidenhain TNC 320 CNC Control
2008 Heidenhain Glass Scales on all Axes
2008 new Lead screw & rack and pinion drive
2008 spline re-chromed & re-Ground
Anti backlash on Z axis

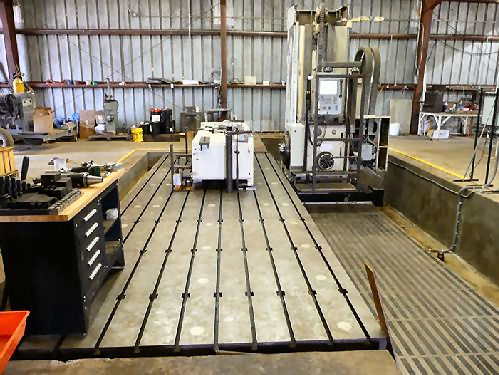

25 FT floor Plates (1) 8' x 8' (1) 17' x 8'
(2) Angle Plates ( 12' X 4')

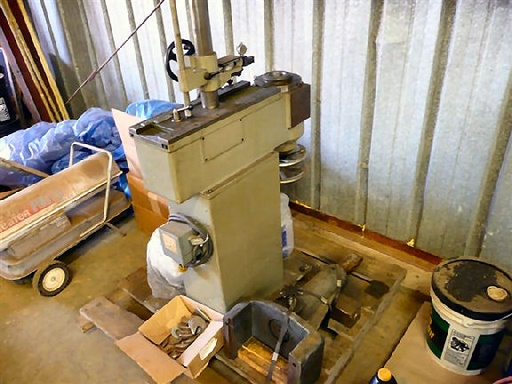

Scharmann Tool Presetter
Devlieg Microbore Tooling package 16 piece Boring Bar Set (Cat 50)
Spindle Torque : 5000 LBS 60/30HP spindle motor

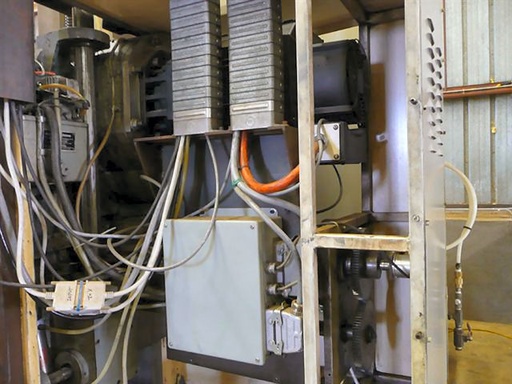

Completely rebuilt with all new AC drives, AC servos, Wiring & gears

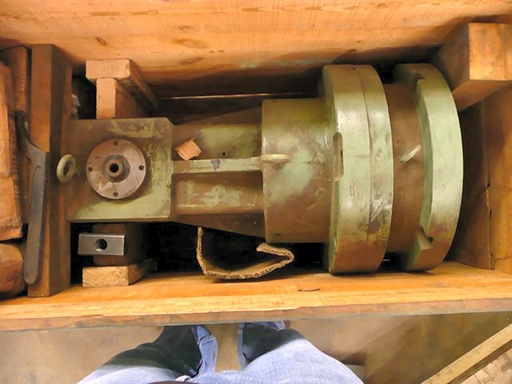

90 Deg Head, Wotan, 40 taper 2;1 ratio

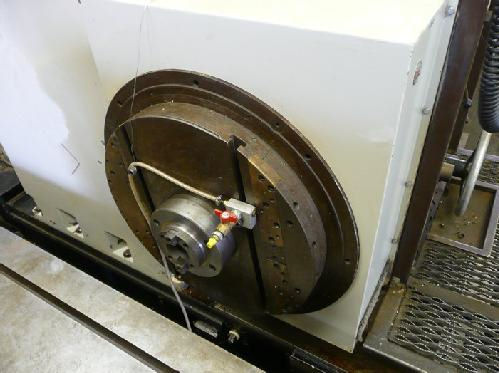

28" facing head
Feed out Facing Head Holder
34' coolant tank

** In Plant, Under Power **
SUPBERB CONDITION
