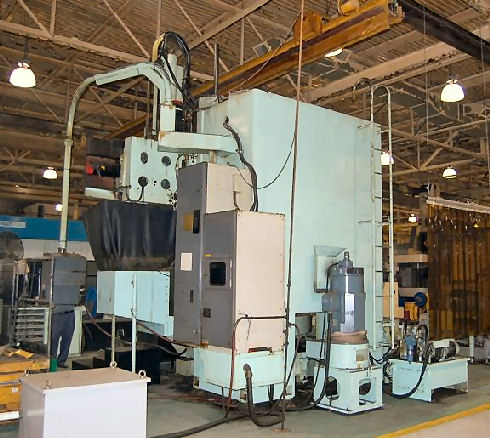

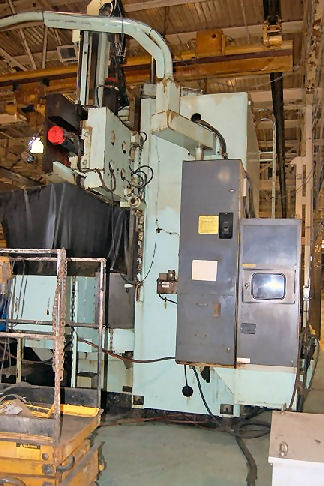

78" OM VTF-20N, FANUC 15TF,98"swing,5 POSITION TURRET,73 HP,4 JAW CHUCK, 1989   Our stock number: 82084

78 OM VTF-20N, FANUC 15TF,98 swing,5 POSITION TURRET,73 HP,4 JAW CHUCK, 1989

Click on picture below for larger version
78 OM VTF-20N, FANUC 15TF,98 swing,5 POSITION TURRET,73 HP,4 JAW CHUCK, 198978 OM VTF-20N, FANUC 15TF,98 swing,5 POSITION TURRET,73 HP,4 JAW CHUCK, 198978 OM VTF-20N, FANUC 15TF,98 swing,5 POSITION TURRET,73 HP,4 JAW CHUCK, 1989
78 OM VTF-20N, FANUC 15TF,98 swing,5 POSITION TURRET,73 HP,4 JAW CHUCK, 198978 OM VTF-20N, FANUC 15TF,98 swing,5 POSITION TURRET,73 HP,4 JAW CHUCK, 1989


Table Diameter ....................... 78.74"
Maximum Swing ........................ 98.42"
Maximum Turning Diameter ............. 90.55"
Maximum Height Table to Crossrail .... 80.75"
Maximum Turning Height ............... 71.45"
Maximum Weight Workpiece ............. 33,048 Lbs.
Vertical Travel of Tool Head ......... 39.37"
Horizontal Travel of Tool Head ....... 59.05"
Table Speeds: 2-Ranges ............... 1.25-200 RPM
Rapid Traverse ....................... 393.7 IPM

EQUIPPED WITH:

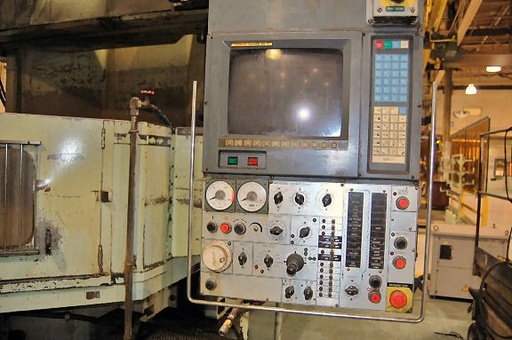

Fanuc 15TF CNC Control

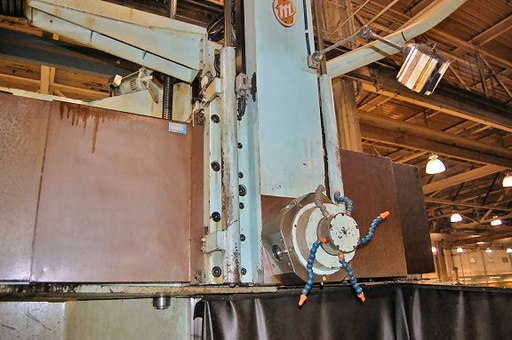

5-Postion Power Indexing Turret
78.74" 3-Jaw Hydraulic Chuck
(4) Jaw Face Plate Type Chuck
Programable 6-Position Cross Rail
73 HP Table Drive
Flood Coolant System
Chip Conveyor

VERY GOOD CONDITION
