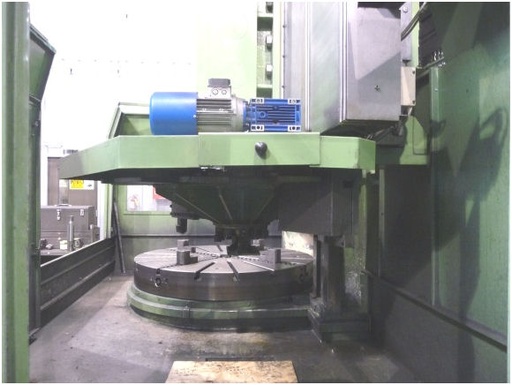

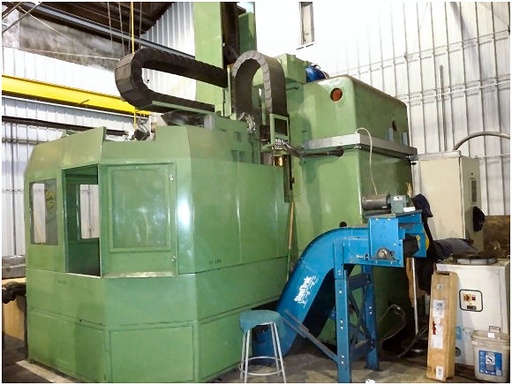

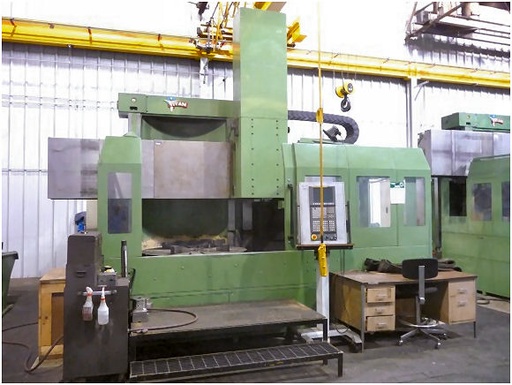

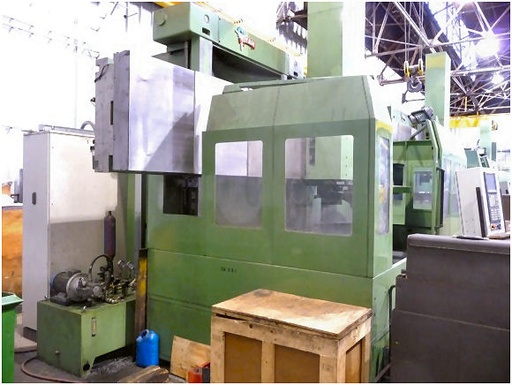

57" TITAN 57/65,FANUC OITC,12 ATC,39.37 TURNING HEIGHT,4 JAW CHUCK, 2008   Our stock number: 81499

57 TITAN 57/65,FANUC OITC,12 ATC,39.37 TURNING HEIGHT,4 JAW CHUCK, 2008

Click on picture below for larger version
57 TITAN 57/65,FANUC OITC,12 ATC,39.37 TURNING HEIGHT,4 JAW CHUCK, 200857 TITAN 57/65,FANUC OITC,12 ATC,39.37 TURNING HEIGHT,4 JAW CHUCK, 200857 TITAN 57/65,FANUC OITC,12 ATC,39.37 TURNING HEIGHT,4 JAW CHUCK, 200857 TITAN 57/65,FANUC OITC,12 ATC,39.37 TURNING HEIGHT,4 JAW CHUCK, 2008

PRICE REDUCTION:
THREE(3) MACHINES AVAILABLE

Table Diameter ........................ 57.08"
Maximum Turning Diameter .............. 65"
Maximum Turning Height ................ 39.37"
Cross Rail Vertical Travel ............ 27"
Ram Vertical Travel, Z-Axis ........... 39.37"
Ram Horizontal Travel, X-Axis ......... 59"
Ram Cross Section ..................... 10" x 10"
Table Speeds .......................... 1-250 RPM
Number of Geared Ranges ............... 2
Table Load Capacity ................... 17,600 Lbs.
Maximum Torque at Table Diameter ...... 4800 Lbs-Ft
Cutting Force ......................... 1826 Lbs
Cutting Feeds X/Z Axes ................ 0.039-236 IPM
Rapid Traverse Rate X/Z Axes .......... 236 IPM
Cross Rail Elevation .................. 16 IPM
Power Source .......................... 80 KVA
Machine Dimensions (W x D x H) ........ 177" x 126" x 185"
Approximate Machine Weight ............ 43,230 lbs

EQUIPPED WITH :
FANUC oItc cnc cONTROL
12-STATION aUTOMATIC tOOLCHANGER

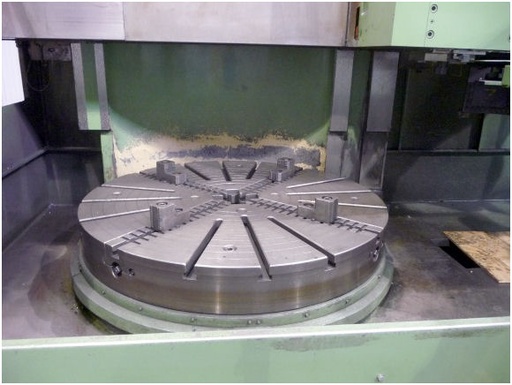

57" 4-jAW iNDEPENDENT cHUCK
FANUC sERVO mOTORS & dRIVES
cAST iRON cONSTRUCTION
CROSSED rOLLER tABLE bEARING
VERTICAL dRIVE mOTOR tHROUGH zf gERMAN gEAR bOX
HEIDENHAIN mEASURING sYSTEM (sCALES & eNCODERS)
PRECISION bALL sCREWS
FULL eNCLOSURE sPLASH gUARDS
COOLANT sYSTEM
FOUNDATION lEVELING sYSTEM
LUBRICATING sYSTEM
CHIP cONVEYOR
STEEL sLIDING wAY cOVERS ON cROSS rAIL
50 hp/60 hp fANUC tABLE dRIVE mOTOR

INSPECT UNDER POWER IN AN EAST COAST PLANT - BEAUTIFUL CONDITION
THREE MACHINES AVAILABLE:

PRICE FOR EACH:::::
