56" BULLARD, 49" UNDER THE RAIL,50 HP,SIDE HEAD,TURRET, RAM,5-200 RPM,1967   Our stock number: 80490

56 BULLARD, 49 UNDER THE RAIL,50 HP,SIDE HEAD,TURRET, RAM,5-200 RPM,1967

Click on picture below for larger version

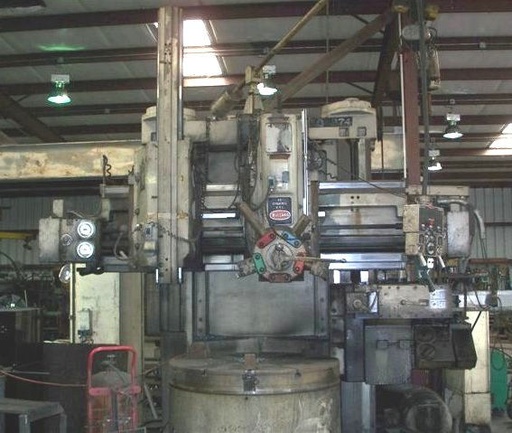

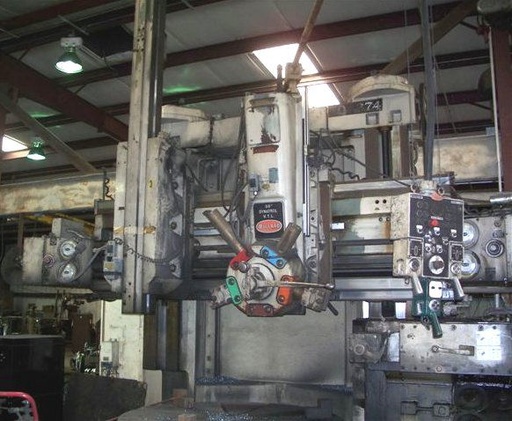

56 BULLARD, 49 UNDER THE RAIL,50 HP,SIDE HEAD,TURRET, RAM,5-200 RPM,1967


CHUCK DIAMETER.......................... 56"
MAXIMUM SWING WITH SIDE HEAD DOWN....... 68"
MAXIMUM SWING WITH SIDE HEAD UP......... 62"
MAXIMUM HEIGHT UNDER RAIL............... 48"
VERTICAL TRAVEL OF CROSS RAIL........... 38"
VERTICAL TRAVEL OF LEFT HAND RAM........ 51"
VERTICAL TRAVEL OF RIGHT HAND TURRET.... 30 3/4"
VERTICAL TRAVEL OF SIDE HEAD............ 46 3/4"
MAIN MOTOR.............................. 50 HP CHUCK SPEEDS (20

SPEEDS)................ 5 TO 200 RPM APPROXIMATE MACHINE WEIGHT..............

82,000 LBS APPROXIMATE FLOOR SPACE REQUIRED.... 144" FB,140" LR, 192"- TALL

RAIL & RAM UP

EQUIPPED WITH:
* 56" 3-JAW CHUCK
* LEFT HAND RAM
* RIGHT HAND 5-SIDED TURRET
* SIDE HEAD

THIS MACHINE CAN BE INSPECTED UNDER POWER IN PLANT
