5.9" MITSUBISHI MAF-HS 500, FANUC 15M,2 PALLETS,98"X,78"Y,25.6"SPINDLE, 1994   Our stock number: 58621

5.9 MITSUBISHI MAF-HS 500, FANUC 15M,2 PALLETS,98 X,78 Y,25.6 SPINDLE, 1994

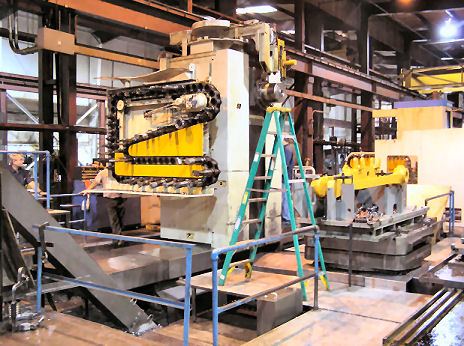

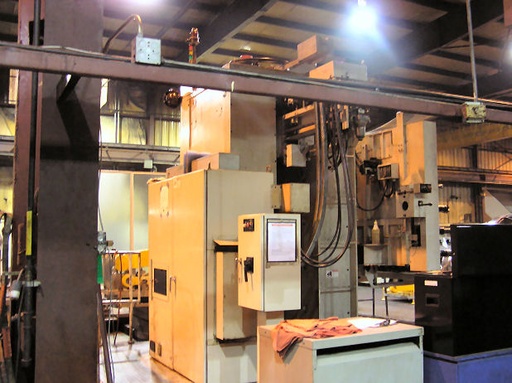

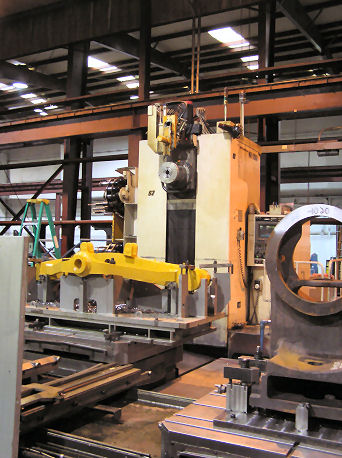

Click on picture below for larger version
5.9 MITSUBISHI MAF-HS 500, FANUC 15M,2 PALLETS,98 X,78 Y,25.6 SPINDLE, 19945.9 MITSUBISHI MAF-HS 500, FANUC 15M,2 PALLETS,98 X,78 Y,25.6 SPINDLE, 1994

A. Main Specification

(1) SPINDLE
- Boring spindle diameter............... 5.9" (150mm)
- Boring spindle nose taper............. 50, Taper 7/24
- Spindle speeds Inf. Var............... 25 - 2,500 rpm
2 stage, ?4 command,.................. 50-120% override
- Output of spindle motor............... VAC 30 Hp (22 kW) continuous


(2) TRAVEL
- X Column, horizontal:................. 98"
- Y Saddle, vertical:................... 78"
- Z Boring Spindle, in/out.............. 25.6" (650mm)

(3) FEED RATES (INF. VAR.)
- X, Y, and Z axis...................... 0.08 to 157 ipm
- f4 command, 0-150% override .......... 2 to 4,000mm/min
- Feed motors........................... Fanuc AC servo 4.7 hp (3.5 kW)

(4) RAPID TRAVERSE
- X axis................................ 630 ipm (16,000mm/min)
- Y axes................................ 474 ipm (12,000mm/min)
- Z axisi............................... 316 ipm (8,000mm/min)

OPTIONAL MACINE FEATURES

- FLOOD COOLANT SYSTEM
- COOLANT THRU SPINDLE
- CHIP CONVEYOR, 2.5 M
- ATC, 80 TOOLS
- ROTARY TABLE, DIT-KH 1500 X 1500 MM
- W-AXIS EXTENSION TO 1M
- B-AXIS CONTROL
- APC 1500 X 1500MM
- INCREASE DISTANCE BETWEEN PALLETS FROM 98" TO 118"
- HELICAL INTERPOLATION
- CIRCULAR THREAD CUTTING
- 3 DIMENSIONAL TOOL COMPENSATION
- ADDITIONAL TOOL OFFSET PAIRS, 99 PAIRS
- RS232C REMOTE BUFFER
- CUSTOM MACRO COMMON VARIABLE ADD. 200 TOTAL
- 2ND REFERENCE POINT RETURN
- AUTOMATIC MEASURING FOR WORKPIECE

UNDER POWER - EXCELLENT CONDITION
